How to Install Blackness Horse Off Route Max Bull Bar - Black (04-xviii All, Excluding Raptor) on your Ford F-150

Installation Time

thirty minutes

American Muscle

Shop Parts in this Guide

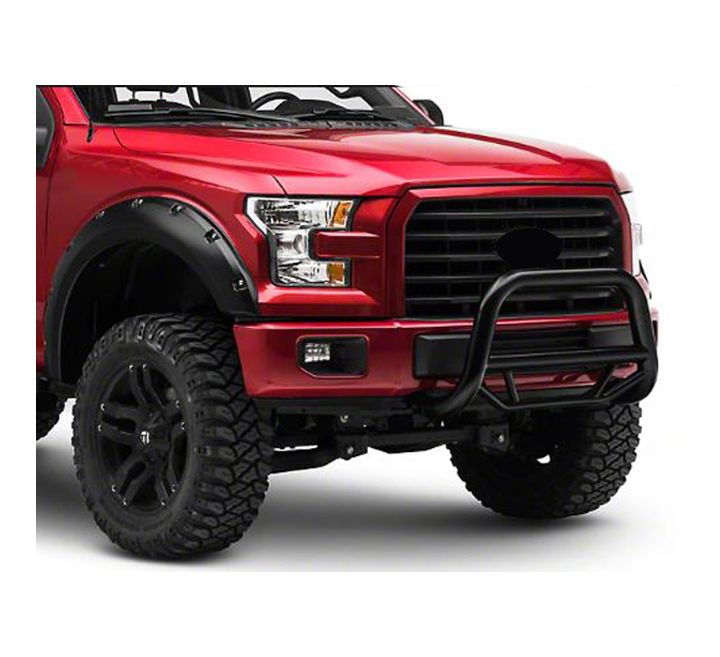

Max Bull Bar; Black (04-22 F-150, Excluding Raptor)

PARTS LIST:

Procedure:

1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.

ii. NOTE: It may be necessary to remove/relocate front license plate and license plate bracket. It is not required, but strongly recommended. If local/state police force requires a license plate, license plate relocation kit is available through your local retailer store.

Vehicles with Factory Tow Hooks

3. Remove tow hooks by removing the front bolt and loosening rear bolt. Slide tow hooks off. Remove rear commodities and make certain nut plate in frame stays aligned with holes.

4. Position Bottom Brackets up to bottom frame and secure them with factory tow hook bolts (Figure 1).

Vehicles without Tow Hooks

5. Insert 2 bolt plates through the end of frame and into bottom frame holes. NOTE: It may be necessary to remove the lower plastic portion of the bumper to proceeds access to ends of frame rails. The indented pockets in the lower bumper will need to be cut out to allow bottom brackets to pass trough.

6. Position Lesser Brackets up to lesser frame and trough Bolt Plates and secure them with the included (4) 12mm Flat Washers, (iv) 12mm Lock Washers, and (4) Hex Nuts (Figure 2).

7. Position Bull Bar on the outer side of Mounting Brackets. Attach Bull Bar to Mounting Brackets using the included (4) 10mm x 30mm Hex Head Bolts, (iv) 10mm Lock Washers, (four) 10mm Hex Nuts, and (eight) 10mm Flat Washers.

eight. Adjust Bull Bar properly, and then tighten all hardware at this time.

nine. Practice periodic inspections to the installation to brand certain that all hardware is secure and tight.

To protect your investment, wax this product later installing. Regular waxing is recommended to add a protective layer over the terminate. Do not use whatsoever type of smooth or wax that may contain abrasives that could harm the stop.

For stainless steel: Aluminum polish may be used to polish small scratches and scuffs on the finish. Mild soap may be used besides to clean the Sidebar. For gloss black finishes: Mild lather may be used to clean the Sidebar.
